A guideway
grinding machine — also called a slideway grinder or guide rail grinding machine — is a large precision machine tool used to grind the guideways (slideways) of machine tools and machinery. Guideways determine the accuracy of movement on lathes, grinders, milling machines and measuring machines, so their flatness, straightness and surface quality directly affect the performance of the entire machine. This article explains how guideway grinding machines work, their main types and how to choose the right one.
How Does a Guideway Grinding Machine Work?
A guideway grinder removes material from the guide surfaces of a machine bed, column or slide using a grinding wheel, generating precision flat, V-shaped or dovetail guideway profiles. The working principle includes:
1. Workpiece mounting — the machine bed or slide (often a large casting) is mounted on the machine table and leveled.
2. Grinding motion — the grinding wheelhead traverses along the guideway length while the table or wheelhead provides the feed motion.
3. Profile generation — flat, V-type, dovetail and combined guideways are ground using appropriately shaped grinding wheels.
4. Precision finishing — repeated passes achieve tight flatness and straightness tolerances (often measured in microns over several meters).
5. Measurement and correction — precise instruments verify geometry, and errors are corrected by further grinding.
Core Components
- High-rigidity machine base — heavy cast iron structure that resists deflection under load.
- Large worktable — supports long, heavy castings with precise leveling.
- Grinding head — driven by a high-stiffness spindle with precise vertical and angular adjustment.
- CNC/control system — manages traverse, feeds, dressing and measurement compensation.
- Dressing device — maintains wheel profile for accurate guideway geometry.
Main Types of Guideway Grinding Machines
1. Gantry Guideway Grinding Machine
A gantry-type machine where the grinding head is supported on a portal (gantry) frame spanning the worktable. It offers high rigidity and large capacity, making it the standard for long machine-tool beds and columns.
2. Slideway / Table-Type Guideway Grinder
A more compact design where the wheelhead moves over the guideway on a slide. Suitable for medium-sized machine beds.
3. CNC Guideway Grinding Machine
Equipped with CNC control and automatic dressing/measurement, delivering high accuracy, repeatability and reduced operator dependence.
Key Advantages of Guideway Grinding Machines
- Micron-level flatness and straightness — essential for machine tool accuracy.
- High surface quality — smooth guide surfaces reduce friction and improve motion quality.
- Handles large, heavy castings — gantry designs grind long beds in one setup.
- Improved wear resistance — precision-ground guideways last longer.
- Consistent, repeatable results — CNC control reduces manual skill dependence.
Applications of Guideway Grinding Machines
- Machine tool manufacturing — grinding beds, columns and slides of lathes, grinders and milling machines.
- Precision machinery — guideways for measuring machines and coordinate equipment.
- Heavy equipment — large guide surfaces for presses, wind turbines and machinery bases.
- Rebuilding and reconditioning — restoring worn guideways to original accuracy.

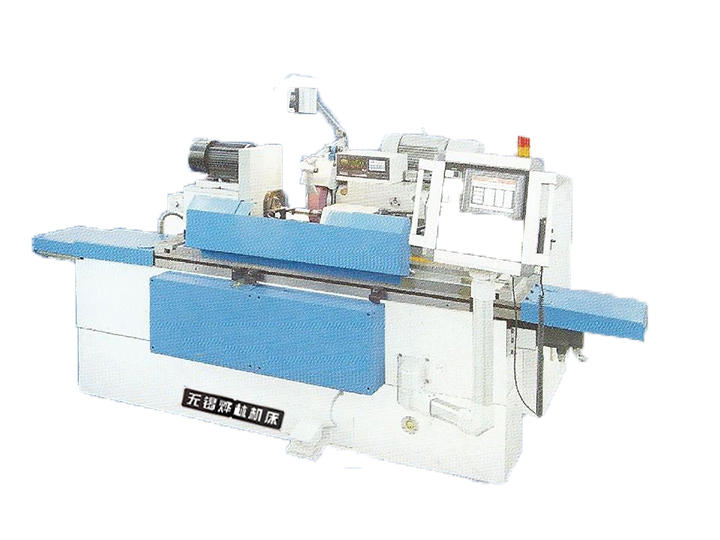

Wuxi Yelin Machine Tool's own manufacturing capability includes CNC gantry guide grinding machines and ultra high precision grinding machines, supporting the production of high-precision external cylindrical grinders, internal grinders, centerless grinders and ultra precision machine tools.Wuxi Yelin Machine
How to Choose a Guideway Grinding Machine
1. Workpiece size and weight — determine table capacity, grinding length and load capability.
2. Guideway profile — confirm the machine can grind flat, V, dovetail and combined profiles.
3. Accuracy requirements — check flatness, straightness and surface finish specifications.
4. Rigidity and stability — heavy cast iron construction is critical for precision grinding of large parts.
5. Automation level — CNC control and automatic dressing improve consistency and productivity.
Why Choose Wuxi Yelin Machine Tool
Wuxi Yelin Machine Tool Co., Ltd. adheres to a quality policy of precision, reliability and continuous improvement, producing high-precision grinding equipment with a professional manufacturing and assembly plant.Wuxi Yelin Machine
Contact our engineers to discuss your guideway grinding requirements and precision machine tool solutions.
