A profile grinding machine — also called a contour grinding machine or curve grinder — is a precision machine tool designed to grind complex, non-cylindrical contours on workpieces. Instead of producing only straight cylindrical surfaces, a profile grinder follows a programmed contour so that cams, templates, form tools, cam profiles and shaped components can be machined to micron-level accuracy. This guide explains how profile grinding machines work, their main types, applications and how to choose the right one.

How Does a Profile Grinding Machine Work?

Profile grinding is an abrasive machining process in which a rotating grinding wheel removes material from a workpiece to generate a desired contour. The working principle is based on precise coordination between the grinding wheel and the workpiece motion:

1. Contour definition — the target profile is programmed into the CNC control as a mathematical path (or generated from a template/master in optical profile grinders).

2. Motion control — servo-driven axes move the workpiece and/or the grinding wheel along the contour path with high resolution, typically 0.001 mm or finer.

3. Material removal — the high-speed grinding wheel grinds the surface incrementally, achieving the required profile, finish and dimensional accuracy.

4. Dressing — the wheel is periodically dressed to maintain its shape, because the wheel profile directly determines the machined contour.

Core Components

- High-precision grinding wheel spindle — with dynamic-pressure or high-rigidity bearings for rotational accuracy.

- CNC servo axes — precise ball-screw-driven axes for contour following.

- Control system — interpolates the contour path and manages grinding cycles.

- Dressing device — restores wheel geometry for consistent profiles.

- Coolant system — controls temperature and flushes grinding debris.

Main Types of Profile Grinding Machines

1. CNC Profile Grinding Machine

The most common modern type. The workpiece profile is generated by CNC interpolation, offering high flexibility — changing a part simply means changing the program.

2. Optical Profile Grinding Machine

Uses an optical projection system to compare the workpiece shadow with a magnified master drawing, allowing the operator to grind the profile with visual feedback. Ideal for form tools and precision templates.

3. Contour Grinding Systems on CNC Cylindrical Grinders

Advanced CNC cylindrical grinders equipped with contour interpolation can grind shoulders, tapers and curved transitions in a single setup — a growing trend in precision manufacturing.

Key Advantages of Profile Grinding

- Micron-level accuracy — consistent dimensional and geometric precision across repeated cycles.

- Excellent surface finish — low surface roughness for high-performance parts.

- High flexibility — CNC programming allows fast changeover between different profiles.

- Reduced setup time — complex contours are ground in one clamping.

- Superior consistency — eliminates errors from manual form grinding.

Applications of Profile Grinding Machines

- Automotive — camshaft lobes, cam profiles and precision form tools.

- Tool and die industry — form cutters, templates, punches and dies.

- Aerospace — airfoil-related contours and precision components.

- Bearings — raceway and profile grinding of rolling elements.

- General precision engineering — any component requiring complex curved surfaces.

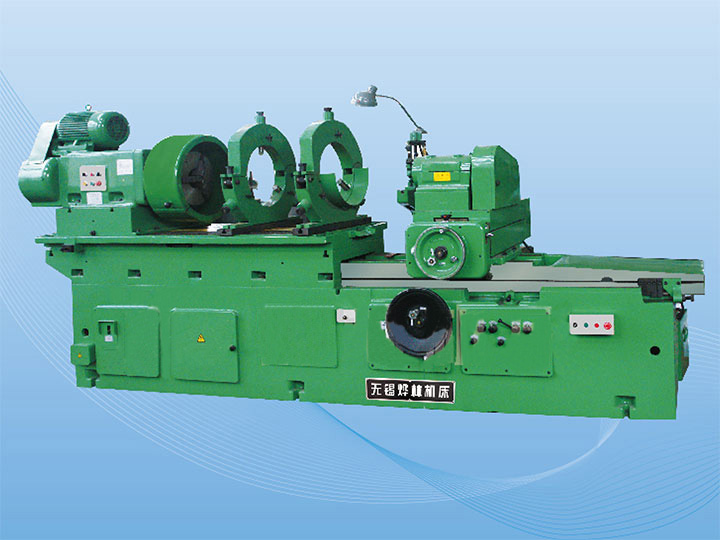

Wuxi Yelin Machine Tool's high-precision cylindrical grinders, CNC grinders and ultra precision machines are widely applied across the aviation, aerospace, military, automotive, bearing and machine tool sectors.Wuxi Yelin Machine

How to Choose a Profile Grinding Machine

1. Define the contour complexity — determine whether a 2-axis CNC profile grinder or a multi-axis contour system is required.

2. Check accuracy requirements — verify positioning resolution, roundness and surface finish capability.

3. Evaluate workpiece size — confirm grinding capacity, swing and length.

4. Assess production volume — batch size determines the need for automation and quick changeover.

5. Consider rigidity and stability — a rigid machine base and high-quality spindle bearings are essential for precision contour work.

Why Choose Wuxi Yelin Machine Tool

Wuxi Yelin Machine Tool Co., Ltd. specializes in the research, production and sales of comprehensive grinding machine series, including high-precision cylindrical grinders, CNC grinders, internal grinders and ultra precision machines, backed by modern machining centers and a professional assembly plant.Wuxi Yelin Machine

Contact our engineers with your contour drawing and tolerance requirements to receive a tailored profile grinding solution.
