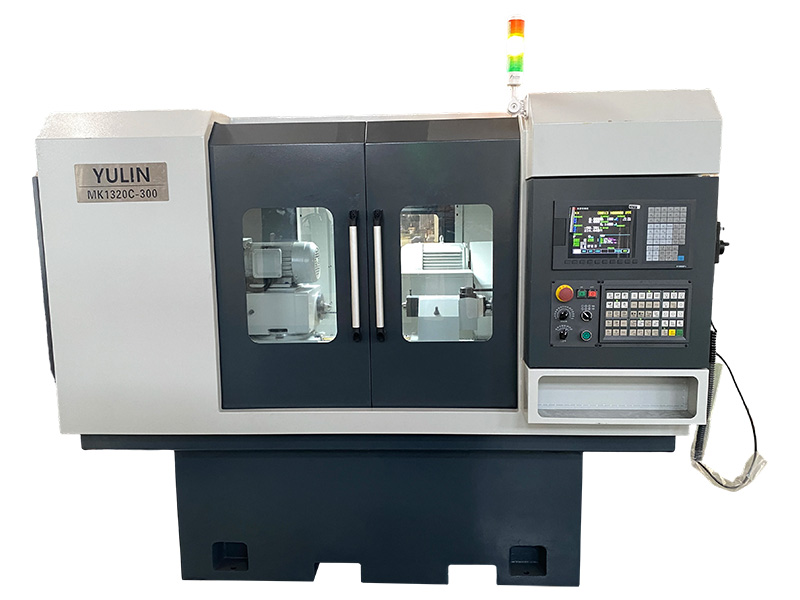

1. Introduction

Different from grinders and lapping machines, honing machines achieve high-precision inner hole finishing through the combined motion of honing head rotation and reciprocation. They are essential for components requiring strict inner hole quality (roundness ≤ 0.001 mm, Ra ≤ 0.02 μm), such as engine cylinder bores, hydraulic valve holes, and bearing holes.

2. Structure and Working Principle

2.1 Core Components

- Machine Base: High-rigidity structure with vibration damping to ensure stable operation during honing.

- Honing Head: Equipped with CBN/diamond honing stones and an expansion mechanism to fit inner hole surfaces evenly.

- Spindle System: Drives the honing head to rotate and reciprocate stably, with runout controlled within 0.0005 mm.

- Feed & Control: Precision servo feed and CNC control for automated parameter adjustment and consistent processing.

- Cooling System: High-pressure filtered coolant to reduce temperature and flush away honing debris.

2.2 Working Principle

The honing head rotates at a constant speed and moves reciprocally along the inner hole axis. The expandable honing stones contact the hole surface evenly, generating micro-cutting to remove material gently, avoiding thermal deformation and ensuring high hole precision and smooth surface.

3. Classification and Key Characteristics

3.1 Classification

- By Structure: Vertical (for shallow holes like cylinder bores) and horizontal (for deep holes up to 3000 mm).

- By Control: Manual, semi-automatic, and full-CNC (mainstream for large-batch high-precision production).

- By Function: Internal honing (mainstream), external honing, and special honing for stepped/blind holes.

3.2 Core Characteristics

- High Precision: Roundness ≤ 0.001 mm, Ra ≤ 0.02 μm, and dimensional accuracy ±0.001 mm.

- Gentle & Uniform: No thermal deformation, suitable for high-hardness and fragile inner hole components.

- Strong Adaptability: Processes various materials (alloy steel, cast iron) and hole sizes (φ5–φ500 mm).

4. Key Parameters and Selection

4.1 Core Parameters

Core parameters include processing capacity (max hole diameter φ5–φ500 mm, max hole depth 10–3000 mm, max workpiece weight 50–1000 kg), honing precision (roundness ≤ 0.001 mm, Ra ≤ 0.02 μm), and spindle specifications (rotation speed 50–2000 rpm, reciprocating speed 0.1–1 m/min).

4.2 Selection Principles

Select structure based on hole depth (vertical for shallow holes, horizontal for deep holes), control mode by production scale, and honing stone type by workpiece material hardness.

5. Industrial Applications

Widely used in automotive (engine cylinder bores, crankshaft holes), aerospace (hydraulic components), hydraulic industry (valve holes, hydraulic cylinders), and precision machinery (bearing holes).

6. Operation and Troubleshooting

6.1 Operation Tips

- Adjust honing head expansion pressure and motion parameters according to hole size and material.

- Clamp workpieces firmly without deformation; regularly dress honing stones to maintain sharpness.

- Maintain the cooling system to ensure uniform cooling and clean coolant.

6.2 Common Troubleshooting

Common faults and solutions: Poor hole roundness is caused by uneven honing pressure or spindle runout, resolved by adjusting pressure and calibrating the spindle; surface scratches result from honing stone passivation or debris, fixed by dressing/replacing stones and cleaning the cooling system.

7. Development Trends

Developing towards intelligence (AI-based parameter optimization), higher precision, automation (integrated production lines), and greenization (energy-saving and environment-friendly coolants).

8. Conclusion

As core inner hole finishing equipment, honing machines play an irreplaceable role in high-end manufacturing. Their unique composite motion ensures ultra-precision inner holes, supporting the development of automotive, aerospace, and hydraulic industries.
