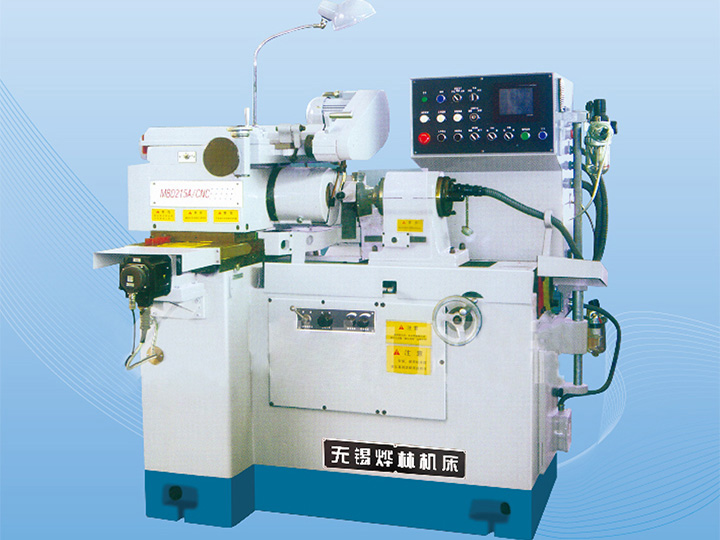

Vertical Grinders: High-Rigidity Precision for Heavy-Duty Finishing
Release time：2026-06-01 Visits：0
1. Introduction
Vertical grinders, distinguished by their vertical spindle layout, excel in processing large, heavy, or high-precision workpieces. With advantages of compact structure, strong anti-vibration performance, and minimal workpiece deformation, they meet the strict precision requirements of modern heavy-duty manufacturing (runout ≤ 0.001 mm, Ra ≤ 0.1 μm).
2. Structure and Working Principle
2.1 Core Components
- Machine Base: High-rigidity cast iron with reinforced ribs, ensuring stability and reducing vibration.
- Vertical Spindle System: High-precision spindle with bearings, providing stable power for grinding wheel rotation.
- Grinding Head & Dressing System: CBN/diamond grinding wheels with automatic dressing to maintain precision and sharpness.
- Rotary Worktable: Horizontal rotating table for workpiece clamping, suitable for large or heavy parts.
- Cooling & Control: High-pressure cooling system and CNC control (Fanuc/Siemens) for automated operation.
2.2 Working Principle
The vertical spindle drives the grinding wheel to rotate at high speed, while the workpiece is clamped on the rotating worktable. Material removal is achieved through the combination of spindle rotation and worktable movement, leveraging gravity to ensure stable contact and uniform grinding, ideal for heavy stock removal and precision finishing.
3. Classification and Key Characteristics
3.1 Classification
- By Function: Vertical surface, cylindrical, internal, and composite grinders (multi-surface processing).
- By Control: Manual, semi-automatic, and full-CNC (mainstream for high-precision mass production).
- By Worktable: Rotary (high efficiency) and reciprocating (small precision parts) types.
3.2 Core Characteristics
- High Rigidity: Vertical layout reduces deflection, ensuring stability for heavy workpiece processing.
- High Precision: Spindle runout ≤ 0.001 mm, surface roughness Ra ≤ 0.1 μm, dimensional accuracy ±0.001 mm.
- Strong Load Capacity: Suitable for heavy workpieces (max weight up to 1000 kg) and large components.
- Compact Structure: Small footprint compared to horizontal grinders, saving workshop space.
4. Key Parameters and Selection
4.1 Core Parameters
Parameter Category
Key Indicators
Reference Range
Processing Capacity
Max workpiece size, weight
Size: φ100–φ1500 mm; Weight: 100–1000 kg
Grinding Precision
Runout, Ra, dimensional accuracy
Runout ≤0.001 mm, Ra ≤0.1 μm
Spindle & Speed
Spindle speed, motor power
Spindle: 800–20000 rpm; Power: 15–50 kW
4.2 Selection Principles
Choose type by processing function, control mode by production scale, and match specifications to workpiece size/weight and material hardness.
5. Industrial Applications
Widely used in aerospace (engine parts, bearing rings), automotive (gearboxes, brake discs), heavy machinery (wind power bearings, rolls), and tool & die industries, as well as large component repair.
6. Operation and Troubleshooting
6.1 Operation Tips
- Clamp firmly to avoid deformation; check workpiece positioning before grinding.
- Adjust spindle speed/feed based on material; regularly dress and balance the grinding wheel.
- Maintain cooling system and lubricate moving parts to extend equipment life.
6.2 Common Troubleshooting
Fault
Causes
Solutions
Poor precision
Spindle runout, unbalanced wheel
Calibrate spindle; balance grinding wheel
Surface scratches
Wheel clogging, coolant contamination
Dress wheel; replace coolant
7. Development Trends
Developing towards intelligence (AI, digital twin), higher precision, automation (integrated production lines), greenization (energy-saving, dry grinding), and multi-process integration.
8. Conclusion
As core precision equipment for heavy-duty and high-precision finishing,
vertical grinders play an irreplaceable role in modern manufacturing. Their continuous upgrading will better support the high-quality development of related industries.
